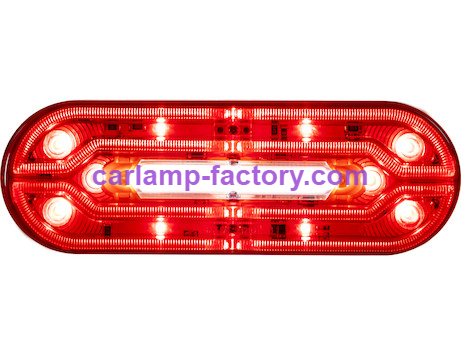

A single wire connected to the incorrect termination point transforms a vehicle's rear lighting array from a reliable communication system into a source of diagnostic frustration.Stop Turn Tail Reverse Lights depend entirely on a complete, low-resistance path to the vehicle's electrical negative terminal, and any deviation from this fundamental principle invites a cascade of operational anomalies. When a technician or an enthusiastic owner mistakenly routes the ground conductor to an unsuitable location, the multifunctional lamp assembly no longer obeys the switch commands it receives. Carlamp-Factory, a lighting division of Baozhiwei Vehicle Industry Co., Ltd., encounters this scenario frequently in its technical support communications, and the symptoms reported often leave experienced installers thoroughly perplexed. Why does a single misplaced ground wire negate the intended function of every bulb in the housing?

The electrical architecture of modern tail lamp assemblies incorporates a shared return path for brake illumination, turn signaling, parking luminosity, and reverse warning functions. This design choice conserves wiring and simplifies the harness, yet it also renders the entire system vulnerable to ground potential variations. Connection of that shared return to a painted surface, a corroded bolt, or an undersized conductor increases circuit resistance substantially. Ohm's Law dictates that increased resistance reduces current flow for any given voltage, so the Stop Turn Tail Reverse Lights receive insufficient amperage to produce their rated luminous output. The brake lamp glows dimly rather than flashing its urgent warning, the turn signal blinks at an irregular cadence, and the reverse light fails to illuminate the path behind the vehicle.

Grounding mistakes produce effects that extend far beyond simple dimness, because the shared return path creates unintended current routes. When one function activates, its electrical energy seeks the lowest impedance path to the battery negative terminal. An improper ground forces that energy to travel through other filaments in the same assembly, energizing circuits that should remain dormant. The parking lamp illuminates simultaneously with the brake application, confusing following drivers about the vehicle's actual intentions. The turn signal on one side causes the opposite reverse light to flicker, creating an incomprehensible visual display that communicates nothing useful to surrounding traffic. These erratic behaviors not only violate equipment regulations but also elevate collision risk substantially.

Professional automotive lighting manufacturers design their products with specific grounding requirements that reflect years of engineering validation. Carlamp-Factory incorporates detailed wiring diagrams and termination guidelines into every tail lamp shipment, because the company understands that installation precision determines long-term reliability. Baozhiwei's production facility in Taizhou, Zhejiang, manufactures each Stop Turn Tail Reverse Lights unit using high-purity copper terminals and corrosion-resistant connectors that minimize contact resistance. These components maintain their electrical integrity across temperature extremes and vibration environments, but only when installers follow the prescribed grounding protocol. The manufacturer cannot compensate for a ground wire attached to a rusty frame member or a plastic support bracket, because those materials lack the conductivity necessary for proper circuit operation.

Diagnosing a ground-related malfunction requires systematic voltage drop testing rather than simple continuity checks. A multimeter set to measure resistance between the lamp's ground terminal and the battery negative post reveals the quality of the return path. Any reading exceeding one ohm indicates a compromised connection that requires immediate remediation. The ground conductor must terminate at a clean, bare metal surface that has been abraded to remove paint, undercoating, or oxide layers. The fastener securing that terminal must apply sufficient clamping force to maintain metal-to-metal contact throughout the vehicle's service life. Thread-locking compounds and anti-oxidation pastes provide additional protection against vibrational loosening and environmental corrosion.

The consequences of incorrect grounding extend into the vehicle's electronic control modules, because modern lighting systems communicate with body computers and driver assistance systems. Those modules monitor current draw for each lighting function and generate fault codes when measured values deviate from expected parameters. An elevated ground resistance reduces current flow, prompting the module to register a bulb outage and disable related features such as automatic high-beam control or trailer sway mitigation. The driver receives dashboard warnings about non-existent bulb failures, leading to unnecessary replacement purchases and continued frustration when the new bulbs exhibit identical symptoms. This diagnostic trap wastes time and money, yet it resolves immediately upon correction of the underlying ground deficiency.

Baozhiwei's engineering team emphasizes grounding integrity in every technical bulletin and installation guide distributed with its products, because experience demonstrates that this single factor accounts for the majority of field failures. The company's commitment to quality extends beyond the manufacturing phase into comprehensive customer education about proper installation practices. Visit https://www.carlamp-factory.com/product/car-tail-lamp/tail-lamp-for-toyota-series/ to examine how professional-grade components simplify correct wiring and eliminate common grounding pitfalls. Those who disregard grounding instructions expose themselves to unpredictable lighting behavior, failed safety inspections, and potentially hazardous driving conditions.

The path to reliable Stop Turn Tail Reverse Lights operation lies not in expensive components or complex controllers, but in the fundamental discipline of proper termination. Grounding deserves the same meticulous attention as any other aspect of automotive repair, because electrical circuits cannot function without a stable reference point. A few minutes spent preparing a clean grounding surface and securing a robust connection prevent hours of subsequent troubleshooting. When the brake pedal depresses and the stop lamps blaze with their full intended intensity, the driver gains confidence in the vehicle's safety systems and the technician's professional skill. This outcome requires no advanced knowledge or special tools, only respect for the electrical principles that govern every lighting circuit. Does your current grounding practice meet that standard of care?
